1. GETTING STARTED

Congratulations on your purchase of the ELITE model JVC 700 sharpening machine.

Please read this guide before you begin.

The JVC 700 is our single-wheel sharpening machine for circular blades from ø30 to ø800 mm.
With 1 CNC axis it allows complete automation in the sharpening process of 1 cutting edge at a time on circular blades and counter-blades.

You can view the product catalog at the following link: ELITE model JVC 700

This manual introduces you to the main functions of the sharpening machine in order to avoid risks to your health or that may cause a breakdown or premature wear of the machine.

If you have any questions, please contact us directly or one of our authorized distributors.

Informative Note: The user manual for the knife sharpener described herein may present some variations in use as our machine is subject to possible construction modifications, depending on the incorporation of technological advances in our sharpening equipment.

2.SAFETY

2.1.Safety regulations

Carefully observe and apply the following safety regulations; failure to comply with these regulations may cause personal injury or damage to the machine itself.

The installation and maintenance of the machine described in this manual must only be carried out by operators who are familiar with its operation and have sufficient technical knowledge.

The ELITE sharpeners in the JVC 700 range have been designed for sharpening circular or, optionally, sickle-shaped (cutter) blades, excluding any other type of operation.

These warnings do not include all possible risks that improper use of the machine could cause. For this reason, the operator must proceed with prudence and observing the rules.

2.2.Use and storage of the instruction manual

This instruction manual must be read and understood by all personnel who come into contact with the machine.

This manual is for:

• Indicate the correct use of the machine according to the type of work to be carried out.
• Provide the necessary instructions for the transport, adjustment and maintenance of the machine.
• Facilitate the ordering of spare parts and information on risks.

Limits of use of the manual:

The machine is intended for professional use and therefore the experience of the operator is required and of vital importance.

Importance and conservation of the manual:

This manual must be considered part of the machine and must therefore be attached to it until the end of its use.

Additional information and clarifications:

The user, owner or maintenance person can contact the manufacturer to request any additional information on the use of the machine and possible modalities for maintenance and repair intervention.

Expiration of responsibility:

The manufacturer is considered exempt from any liability in the event of:

• Improper use of the machine
• Use of the machine by untrained persons
• Serious failures in scheduled maintenance
• Unauthorized interventions or modifications
• Use of non-original spare parts.

2.3.Declaration of conformity

The company hereby:
Elite Machines, SLU
Joan Oró, 27
ES-08635 Sant Esteve Sesrovires

declares that the product indicated below, based on its conception and construction, as well as the version put on the market by our company, complies with the mandatory basic health and safety requirements of the CE directive.

This declaration loses its validity in the event of unauthorized modifications to the product.

Product name: ELITE CU
Product type: Circular knives sharpening machine
Serial No.: __

EC Directive Competences:

• EC Machinery Directive (2006/42/EC)
• European directive on electromagnetic compatibility (2014/30/EU)
• The protection purposes of the CE low voltage directive (2006/95/CE) were fulfilled according to annex I, nr. 1.5.1 of the machinery directive 2006/42/EC

The technical documentation was compiled by Legal representative of the documentation:

Sergi Valls Gramunt
Joan Oró, 27
ES-08635 Sant Esteve Sesrovires

Date / manufacturer - Signature: __
Signatory data: Sergi Valls Gramunt, manager

3.TECHNICAL DATA

In the following information table, find the list of technical specifications of the machine described in this manual.

4. TRANSPORT

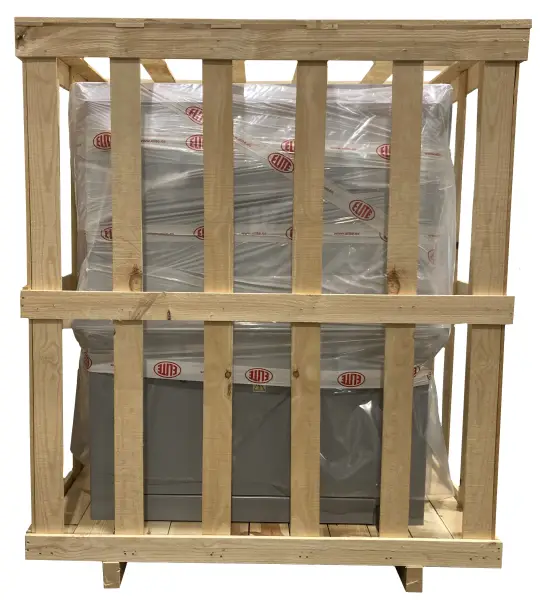

The ELITE JVC 700 is delivered packed in a wooden crate.

During all transport and transfer the machine must be kept in its original vertical position, any variation in this position may result in the loss of the warranty.

4.1. Instructions for unpacking and setting up

Take special care when lifting the load: The load may not be centred! Use a forklift with blades long enough to hold the machine, taking into account the width and depth of the machine when calculating the weights to be lifted.

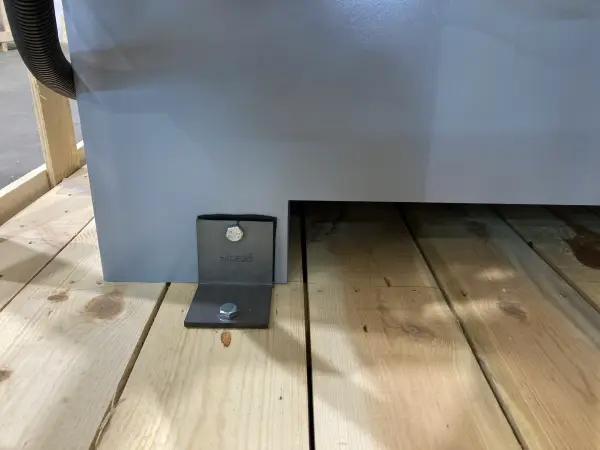

Once the packaging has been opened, remove the fixing stops from the machine's feet

Once the machine has been placed in its final location, you can also remove the protective film and other component protections, which secure the machine and prevent it from moving.

5.INSTALLATION

5.1.Machine positioning

Before any work, we must make sure that the machine is properly aligned and does not oscillate at any of its ends. In this case, it must be supported to prevent movement. To ensure that it is correctly level, a spirit level must be used. This check must be carried out both longitudinally and transversely.

Poor levelling of the machine can cause unwanted vibrations and premature wear of the linear guides.

CAUTION: The machine must not be used under any circumstances by unqualified or unauthorized personnel.

5.2.Electrical connection

HIGH VOLTAGE DANGER!

The electrical connection of the machine must be carried out by qualified technical personnel only at the voltage indicated on the machine order.

For any doubts about the voltage, please consult the manufacturer before connecting.

Any claim for incorrect connection will be void of warranty.

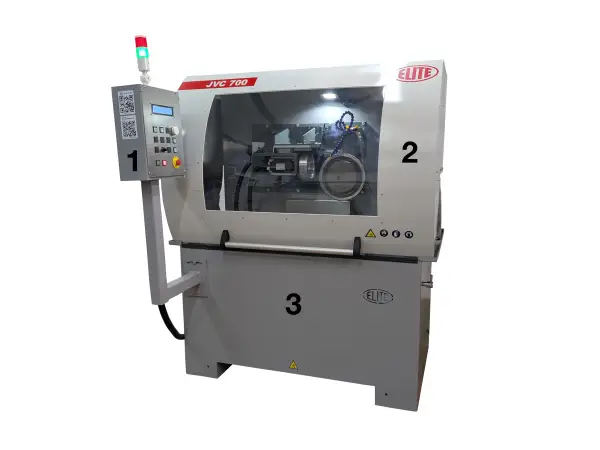

5.3.Main components of the machine

1. Control panel.
2. Door.
3. Enclosure.

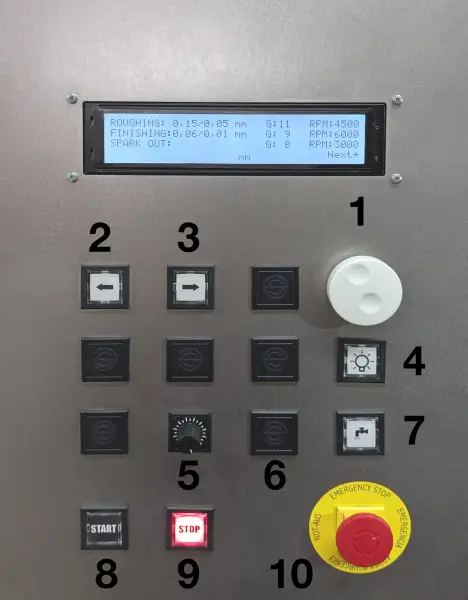

5.4. Control panel

1. Menu screen.
2. Navigation selector.
3. Left movement of the grinding wheel/stone.
4. Right movement of the grinding wheel/stone.
5. Switching on the LED light.
6. Blade rotation speed selector.
7. Opening and closing of the clamp (optional).
8. Activating the cooling system.
9. Starting the automatic cycle
10. Shutting off the automatic cycle.
11. Emergency stop.

6. TURNING THE MACHINE ON

In this section we show you how the buttons on the control panel of the ELITE JVC 750 work.

NOTE: The data that appear in the different images are for example purposes only. Each type of tool has its recommended data and the sharpening professional must know them.

Emergency stop

This is the red button located at the bottom right, in the second to last row of buttons. In the event of a fault in use or a dangerous situation being created, it allows the automatic disconnection of the machine.

It should not be used unless it is strictly necessary.

Once used, the machine must be pulled to return to its initial position.

CAUTION: Under no circumstances should this control be modified or tampered with, as this automatically puts the operator and people around him at risk of serious injury.

Sharpening operation

To start the sharpening process, you must first make sure that the emergency stop button is not activated.
The two types of modes in which it can operate are STOP MODE and START MODE.

DANGER: never manipulate the buttons on the control panel while changing the grinding wheel: risk of very serious injuries.

CAUTION: before starting the grinding wheel we must make sure that it is well secured to the shaft where it is located and that NO ONE is manipulating the area where it turns. UNDER NO CIRCUMSTANCES CAN THE GRINDING WHEEL BE STARTED WHILE SOMEONE IS HANDLING IT.

6.1. Machine introduction

6.2. Switching on and referencing

Switch on the machine with the power selector in the ON position, deactivate the emergency stop if it is active.

The machine screen will turn on and the green traffic light will also turn on.

Check that no axis will collide with the grinding wheel to be referenced.

Then close the cabinet and press the START button and follow the instructions on the screen.

IMPORTANT: Do not open the cabinet while the machine is referencing. In case of accidentally opening it, turn off the machine again and repeat the process.

Once the machine has finished referencing it is ready to work.

6.3. Preparing the machine for operation

6.4. Operating the control panel

6.5. Operating the machine

7. WORK EXAMPLE

8. MAINTENANCE

8.1. Preventive maintenance

The maintenance of the ELITE JVC 700 sharpeners is very simple but at the same time important.

It consists of the following:

1. Cleaning the machine guides: guides of the blade holder and the axis of the grinding wheel.
2. Cleaning and greasing the work table, in case the machine is not used for several days, to avoid its rust.
3. Check the coolant level in the coolant, using the coolant recommended by ELITE: SintoCut MIX for steel and ELITE SintoCut PRO MIX for steel + tungsten carbide. The coolant level must be between 2 and 8%. If it is below this level, it can lead to oxidation of mechanical parts and if the level is higher, it can be toxic.
4. Periodically, the sludge with chips that is deposited both in the work area and in the coolant tank must be emptied.
5. Keeping the machine clean and in good condition will allow optimal use in the long term.

Use the equipment only in dry environments. The temperature must be between 5 and 40ºC. A relative humidity greater than 90%, as well as a saline environment, would cause premature corrosion of the machine.

To lubricate the pneumatic circuit we recommend using Esso Spinesso oil

9. ACCESSORIES AND CONSUMABLES

9.1. Abrasive wheels

9.1.1. For sharpening steel blades

We recommend using ELITE ref. nr. 3522-A2 or 3522-B2. 6A2 Resin ø150x60xø60 mm.

9.1.2. For tungsten carbide blades

We recommend using ELITE ref. nr. 3020-A2. 6A2 ø150x6x4x50xø24CH8 D126 C75

9.1.3. For HSS or small material removal on steel sheets

We recommend using ELITE ref. nr. 3120-C2. 6A2 ø150x6x4x50xø24CH8 B181 C75

9.2.Cooling fluid for the sharpening cooling system

We recommend using ELITE SintoCut PRO MIX or equivalent.

9.3.Additional accessories

Optional accessories to equip with your machine.

9.3.1.Filter systems

The machine can be equipped with one of the following ELITE filter systems. If your machine already has one of these systems and you need For information or assistance, please refer to the filter system manual.

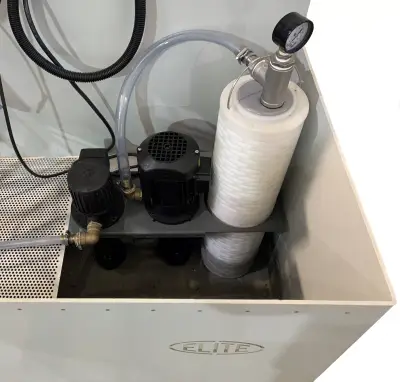

9.3.1.1.FILTRAmaq UNO

Filtering system integrated into the machine to save space.

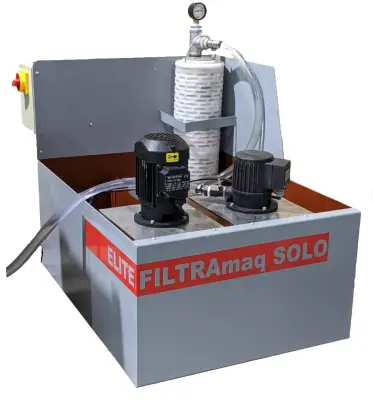

9.3.1.2.FILTRAmaq SOLO

Filtering system independent filtering for one machine.

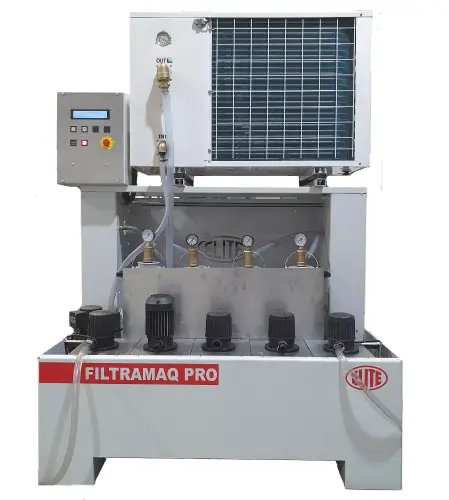

9.3.1.3.FILTRAmaq PRO

Centralized filtration system for the connection of up to 5 machines.

10. WARRANTY

All our machines are tested before being shipped. However, defects that cannot be seen with the naked eye may always occur.

Our machines are guaranteed against manufacturing or material defects under normal conditions of use and maintenance.

The period of this guarantee is 12 months from the date of purchase and consists of the replacement of the defective material.

The guarantee will be automatically voided in the event of modifications not carried out by our company. Or in obvious cases of misuse of the machine.

The warranty does not include parts subject to normal wear and tear due to use, such as skids, lubrication cartridges, abrasives, etc.
