1. FIRST STEPS

Congratulations on your purchase of the ELITE 92 CNC universal tools sharpening machine.

Read this guide before you start.

The ELITE 92 CNC is an automated automatic sharpening machine with up to 4 CNC axes (X, Y, Z, A) designed specifically for sharpening tools in the woodworking business.
Its work table allows a maximum load of 100 kg, for the most common sharpening of cutting tools.

This manual introduces you to the main functions of the sharpener in order to avoid risks to your health or that may cause a breakdown or premature wear of the machine.

In case of any doubt, please contact us directly or one of our authorized distributors.

Informative Note: The user manual for the universal tool sharpener described therein may present some variations in use as our machinery is subject to possible construction modifications, depending on the incorporation of technological advances in our sharpening equipment.

2. SECURITY

2.1.Safety regulations

Carefully observe and apply the following safety rules, not respecting these rules may cause personal injury or damage to the machine itself.

The installation and maintenance of the machine described in this manual must be carried out only by operators who are familiar with its operation and have sufficient technical knowledge.

The ELITE 92 CNC sharpener has been designed for sharpening milling cutters and cutting tools, excluding any other type of operation.

These warnings do not include all possible risks that improper use of the machine could cause. For this reason, the operator must proceed with prudence and observing the rules.

2.2.Use and storage of the instruction manual

This instruction manual must be read and understood by all personnel who come into contact with the machine.

This manual is for:

• Indicate the correct use of the machine according to the type of work to be carried out.
• Provide the necessary instructions for the transport, adjustment and maintenance of the machine.
• Facilitate the ordering of spare parts and information on risks.

Limits of use of the manual:

The machine is intended for professional use and therefore the experience of the operator is required and of vital importance.

Importance and conservation of the manual:

This manual must be considered part of the machine and must therefore be attached to it until the end of its use.

Additional information and clarifications:

The user, owner or maintenance person can contact the manufacturer to request any additional information on the use of the machine and possible modalities for maintenance and repair intervention.

Expiration of responsibility:

The manufacturer is considered exempt from any liability in the event of:

• Improper use of the machine
• Use of the machine by untrained persons
• Serious failures in scheduled maintenance
• Unauthorized interventions or modifications
• Use of non-original spare parts.

2.3.Declaration of conformity

The company hereby:
Elite Sharpening Machines, SLU
Joan Oró, 27
ES-08635 Sant Esteve Sesrovires

declares that the product indicated below, based on its conception and construction, as well as the version put on the market by our company, complies with the mandatory basic health and safety requirements of the CE directive.

This declaration loses its validity in the event of unauthorized modifications to the product.

Product name: ELITE 92 CNC
Product type: Universal tools sharpening machine
Serial No.: __

EC Directive Competences:

• EC Machinery Directive (2006/42/EC)
• European directive on electromagnetic compatibility (2014/30/EU)
• The protection purposes of the CE low voltage directive (2006/95/CE) were fulfilled according to annex I, nr. 1.5.1 of the machinery directive 2006/42/EC

The technical documentation was compiled by Legal representative of the documentation:

Sergi Valls Gramunt
Joan Oró, 27
ES-08635 Sant Esteve Sesrovires

Date / manufacturer - Signature: __
Signatory data: Sergi Valls Gramunt, manager

3.TECHNICAL DATA

In the following information table, find the list of technical specifications of the machine described in this manual.

4.TRANSPORT

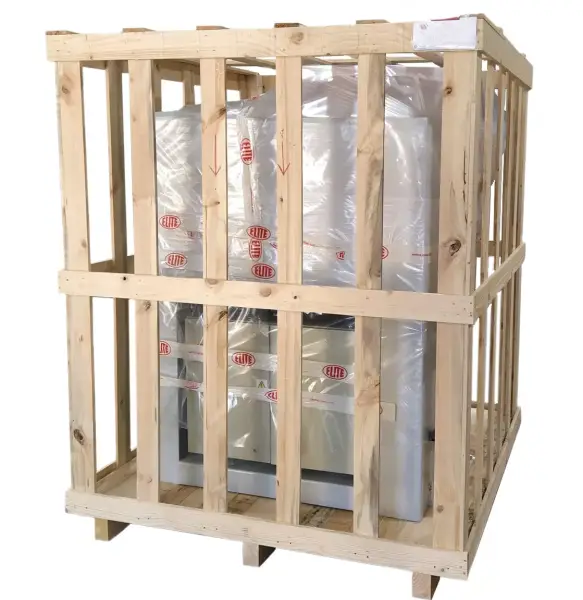

The ELITE 92 CNC is delivered packed in a wooden crate.

During all transport and transfer, the machine must be kept in its original vertical position, any variation in this position may lead to the loss of the guarantee.

4.1.Instructions for unpacking and placement

Take special care when lifting the load: The load may not be centered! To do this, use a forklift with blades long enough to support the machine, taking into account the width and depth of the machine for the lift. calculation of the weights to be lifted.

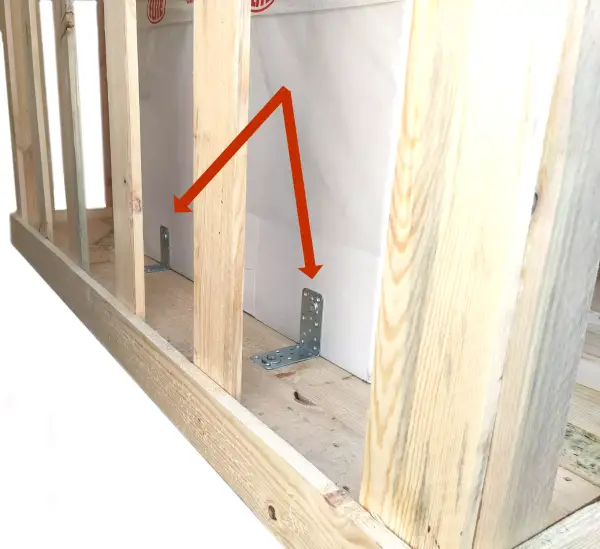

Once the packaging has been opened, remove the fixing stops from the feet of the machine

Once the machine is in its final location, you can also remove the protective film and other protections from the components, which secure and prevent the machine from moving.

5.INSTALLATION

5.1.Location of the machine

Before any work we must make sure that the machine is well aligned and does not oscillate at any of its ends, in which case it must be wedged to avoid movements. For its correct level it is necessary to use a spirit level. This check must be carried out both longitudinally and transversally.

Poorly leveling the machine can cause unwanted vibrations and premature wear of the linear guides.

WARNING: The machine must not be used under any circumstances by unqualified or unauthorized personnel.

5.2.Electrical connection

DANGER HIGH VOLTAGE!

Remember: before connecting the machine, remove any protection that the machine may have to protect the components during transport.

The electrical connection of the machine must be carried out by qualified technical personnel only at the voltage indicated in the machine order.

For any doubt about the voltage, consult the manufacturer before the connection.

Any claim for an incorrect connection will be out of warranty.

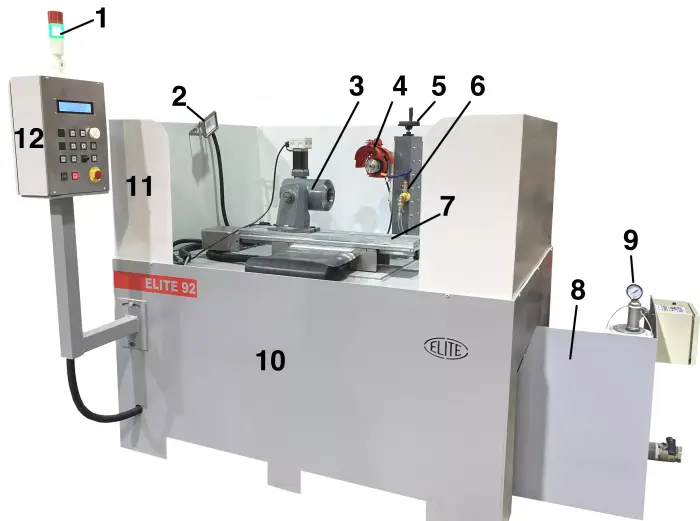

5.3.Main components of the machine

Half enclosure version

1. Machine status light.
2. Led lamp
3. Dividing head (optional)
4. Grinding wheel motor
5. Z axis motion handwheel
6. Coolant outlet
7. Work table
8. Cooling tank
9. FILTRAmaq UNO filtration system (optional)
10. Machine base
11. Half enclosure (optional full enclosure)
12. Control panel

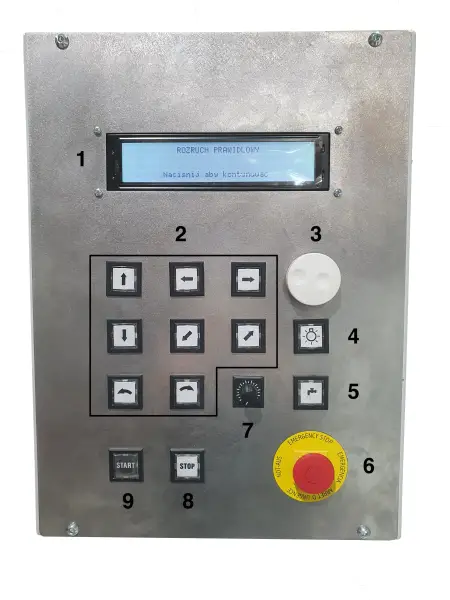

5.4.Control panel

1. Menu screen
2. Axis movement buttons
3. Menu selector
4. Enclosure light
5. Cooling drive
6. Emergency stop
7. Axis speed selector.
8. STOP button
9. START button

6.POWER ON THE MACHINE

In this section we show you how the buttons on the control panel of the ELITE 92 CNC work.

NOTE: The data that appears in the different images are by way of example, each type of tool has its recommended data and the sharpening professional must know them.

Emergency stop

It's the red button at the bottom right, in the penultimate row of buttons. In the event that there is a failure in use or a dangerous situation is being created, it allows the automatic disconnection of the machine.

Should not be used unless strictly necessary.

Once used, to use the machine again, you must pull it to return to the initial position.

WARNING: Under no circumstances should this control be modified or manipulated, this automatically puts the operator and people around him in danger of serious injury.

Sharpening Operation

To start the sharpening process, you must first make sure that the emergency stop button is not activated.
The two types of modes it can operate in are STOP MODE and START MODE.

DANGER: never manipulate the buttons on the control panel while changing the abrasive wheel: danger of very serious injuries.

WARNING: before starting the grinding wheel we must make sure that it is well attached to the axis where it is located and that NOBODY is manipulating in the area where it rotates. UNDER NO CIRCUMSTANCES SHOULD THE WHEEL BE STARTED WHILE SOMEONE IS HANDLING IT.

GENERAL OPERATION

6.1.Power on and referencing

Turn on the machine with the ignition selector in the ON position, deactivate the emergency stop in case it is active.

The machine's screen turns on and the green light of the traffic light also lights up.

Check that no axis will collide with the grinding wheel for homing.

Then close the cabin and press the start button (START) and follow the instructions on the screen.

IMPORTANT: Do not open the cabinet while the machine is homing. If you accidentally open it, turn the machine back off and repeat the process.

Once the machine has finished referencing it is ready to work.

REFERENCE OF THE AXES AND MANUAL MOVEMENT

7.SHARPENING OPERATION

7.1.Setting the sharpening cycle

SHARPENING CYCLE SETTING

7.2.Sharpening cycle

SHARPENING CYCLE

7.3.Sharpening speed adjustment

AUTOMATIC MOVEMENT SPEED REGULATION

7.3.Stopping the sharpening cycle

AUTOMATIC STOP OF THE SHARPENING CYCLE AVOIDING COLLISIONS WITH THE TOOL

8. MAINTENANCE

8.1.Preventive maintenance

The maintenance of the ELITE 92 CNC grinding machines is very simple but at the same time important.

It consists of the following:

1. Cleaning of the carriage guides.
2. Cleaning and greasing the work table, in case the machine is not used for several days, to prevent oxidation.
3. Check the level of coolant in the coolant, using the coolant recommended by ELITE: SintoCut MIX for steel and ELITE SintoCut PRO MIX for steel + tungsten carbide. The coolant level should be between 2 and 8%. Being below it can lead to oxidation of mechanical parts and if the level is higher it can be toxic.
4. Periodically, the sludge with shavings that is deposited both in the work area and in the coolant tank must be emptied.
5. Keeping the machine clean and in good condition will allow for optimal long-term use.

Use the equipment only in dry environments. The temperature must be between 5 and 40ºC. A relative humidity greater than 90%, as well as a saline environment, would cause premature corrosion of the machine.

To lubricate the pneumatic circuit we recommend using Esso Spinesso oil

9.ACCESSORIES AND CONSUMABLES

9.1.Abrasive wheels

9.1.1.Sharpening cutters

For the sharpening of strawberries we recommend the following reference: 2141-A. 4A2. ø150x4x2x12xø20 mm.

For sharpening carbide burs with a narrow pitch we recommend the following reference: 2150-A. D76 C125. ø150x13x2.9x13xø32 mm.

9.2.Cool coolant for the sharpening cooling system

We recommend using ELITE SintoCut PRO MIX or equivalent.

9.3.Additional accessories

Optional accessories to equip with your machine.

9.3.1.Filtration systems

The machine may be equipped with one of the following ELITE filter systems. If your machine already has one of these systems and you need information or help, consult the filter system manual.

9.3.1.1.FILTRAmaq UNO

Filter system integrated in the machine to save space.

OPTIONAL FILTRATION SYSTEM

9.3.1.2.FILTRAmaq PRO

Centralized filtration system for the connection of up to 5 machines.

10. WARRANTY

All our machines are tested before being shipped. However, there can always be defects that are not observable with the naked eye.

Our machines are guaranteed against manufacturing or material defects under normal use and maintenance conditions.

The period of this guarantee is 12 months from the date of purchase and consists of the replacement of defective material.

The guarantee will be automatically canceled in the event of a modification outside our company. Or in manifest cases of misuse of the machine.

The guarantee does not include parts subject to normal wear due to use such as skids, lubrication cartridge, abrasives, etc.
