BASIC GRINDER FOR GRINDING ALL THE GEOMETRIES OF TEETH ON CIRCULAR SAWS WITH CARBIDE TIPS FROM Ø100MM. TO Ø850MM.
HIGHLIGHTS
- Efficient and fast superior and frontal sharpening thanks to its adjustable feed speed
- All tooth profiles can be sharpened
- Easy to use: suitable for both professional and beginner workshop operators
- Design allows for fault-free, low-maintenance operation for long-term operation
ELITE AVB 750. MACHINE BASE.
The ELITE AVB 750 model is our sharpener for the back and face of all common tooth geometries in carbide tipped circular saw blades for circular blade diameters from ø100 to 850 mm.
One-pass external sharpening for tooth types:

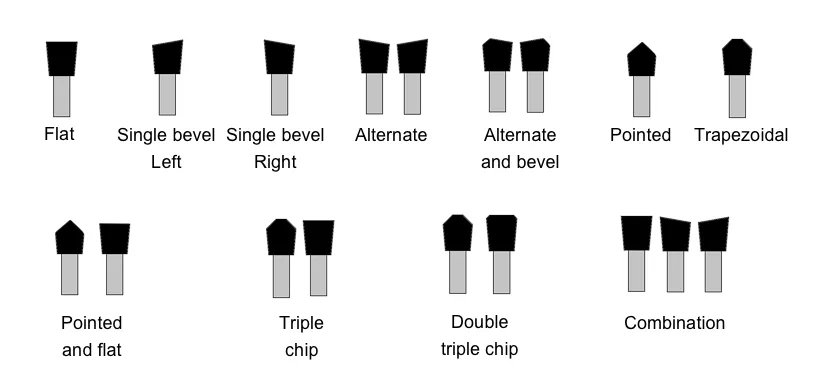

- Flat, inclined, alternating, alternating with bevel, pointed, trapezoid, trapezoid-flat, pointed-flat, alternating-flat, trapezoid-trapezoid.
With 4 CNC axes for complete machining of all common tooth geometries in one cycle, short stroke paths ensure fast sharpening operation.

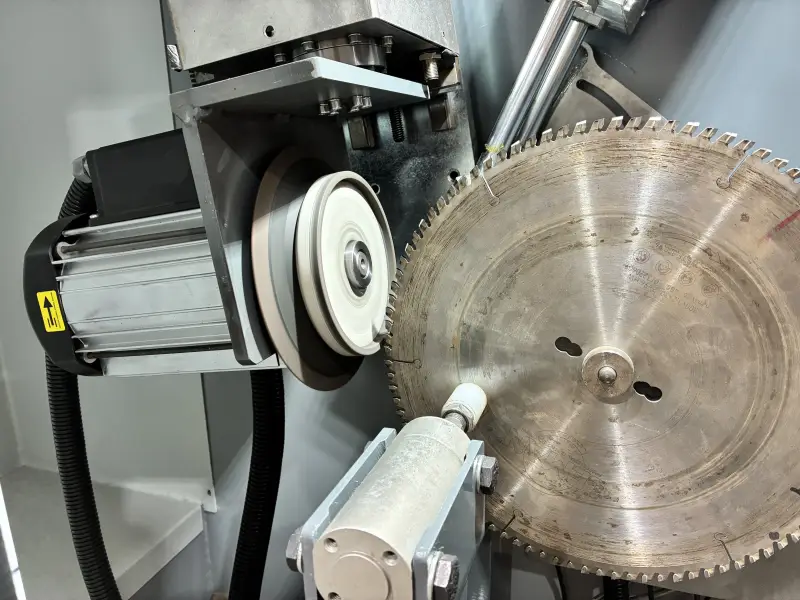

It uses the famous peripheral grinding wheel system to achieve a saw blade with a perfect edge.
It has a half cabin that allows very quick placement of the saw.
Maintenance is very easy to carry out.
ELITE AVB 750. HOW IT WORKS

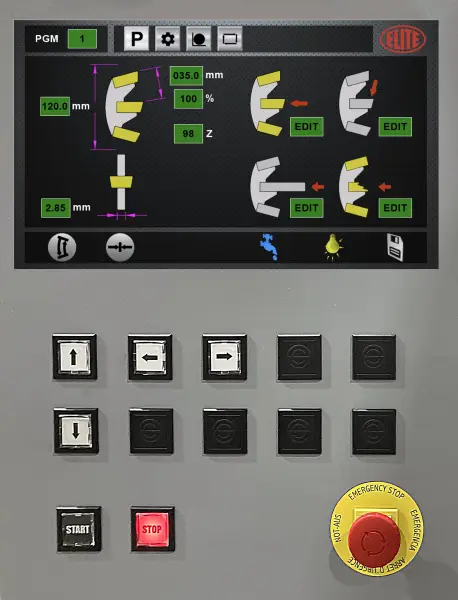

Easy to use control panel
All button functions are explained on the buttons with illustrations. And each button is intended to perform a single task. So you know what to expect when you press a button.

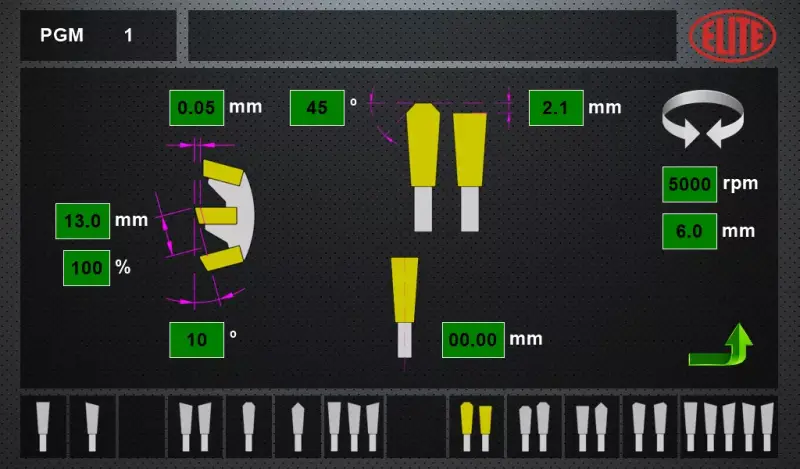

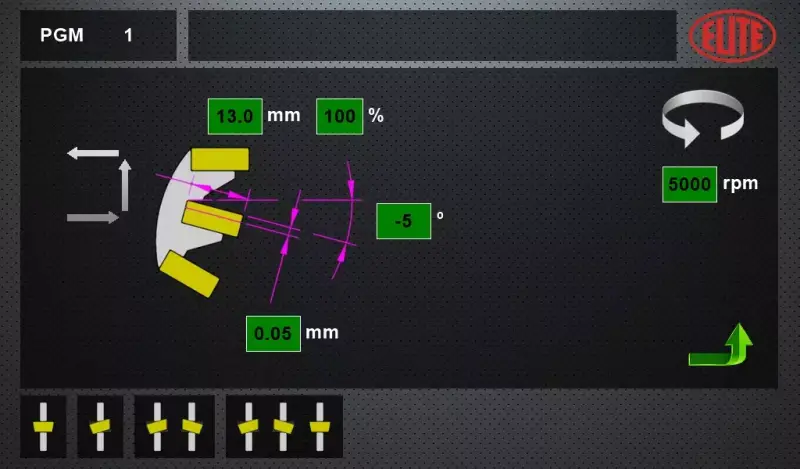

The control panel with LCD screen allows programming of the machine, among the programmable values are:
- Tooth geometry
- Grinding path
- Sharpening charge
- Sharpening speed
- Tooth pitch
- Tooth advance nail feed rate
- Number of teeth
- Broken teeth
Up to 7 teeth/minute on flat trapezoid teeth
Up to 7 teeth/minute on flat trapezoid teeth: All movements have been optimized to reduce downtime.
Variable grinding wheel rotation speed from 2,500 to 5,000 RPM
Variable grinding wheel rotation speed from 2,500 to 5,000 RPM: includes frequency converter as a standard feature, so you can adjust the grinding wheel speed to the optimal value needed as well as reduce energy consumption.
Integrated refrigeration equipment
It allows wet sharpening with water-soluble coolant or grinding oil for better sharpening quality and longer grinding wheel life. for better surface quality and longer grinding wheel life.
Integrated coolant system with 220-liter tank and removable grates for easy cleaning. !Cooling unit for the grinding machine ELITE model AVB 750
Easy access
Easy access for servicing the grinding machine ELITE model AVB 750
Clean design and easy access for servicing or repairing the machine.
Easy maintenance
The electrical panel is located at the bottom and the mechanics at the top of the machine, protected by an easy-to-open cover.
The electrical panel is organized in a clean way, so maintenance is simple when necessary.
ELITE AVB 750. EQUIPMENT INCLUDED
- Saw holder for incisors with a diameter of 100 to 210 mm.
- Saw holder for discs with a diameter of 210 to 850 mm.
- Centering ring: ø30 mm.
- Grinding wheel holder for face and back sharpening wheels
- 3 mm. feed pawl
- Device for sharpening saws of equal diameters
- Prepared for connection to a machine filtration system or a centralized filtration system.
ELITE AVB 750. SPECIFICATIONS
| TECHNICAL DATA | AVB 750 |
|---|---|
| Saw blade outside diameters | From ø100 to ø850 mm. (4" to 33.5") |
| Saw blade hole diameter | From ø10 mm. (0.34") |
| Saw body thickness | Up to 8mm. (0.31") |
| Tooth pitch | Up to 125 mm (4.72"). CNC control |
| TOP GRINDING | |
| Clearance angle | From +5º to +35º |
| Bevel angle | From -45º to +45º |
| Grinding path | Up to 25mm. (0.98") |
| Available tooth shapes | Flat (F) - Single Bevel (L/H or R/H) - Alternate (ATB) - Alternate and bevel (HGB) - Pointed Tooth (PTR) - Trapezoid (D/T/C) - Combination (SLR) |
| FACE GRINDING | |
| Hook angle | From -10º to +35º |
| Grinding path | Up to 25mm. |

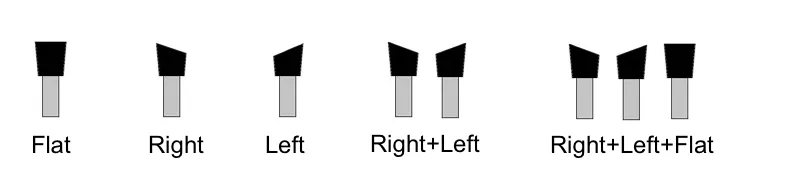

| Available tooth shapes | Flat (F)- Single Bevel (L or R) - Alternate |
| OTHER INFORMATION | |
| Grinding wheel motor | 0.33kW |
| Grinding wheel speed | Adjustable from 2500 to 5000 RPM |
| Diameter of the grinding wheel for top | ø125 mm. |
| Diameter of the grinding wheel for face | ø175 |
| 4 axis CNC | A: Feed pawl - C: Lateral angle of the top of the tooth - X: Grinding load - Z: Grinding path |
| Machine dimensions | 1430x 1285 x 1820mm. |
| Machine weight | 620 kilos |
TECHNICAL REQUIREMENTS
6 bar air connection required.
Connection voltage: 220 2Ph 50/60Hz
Required connection power: 1.5 kW
RECOMMENDED OPTIONAL ACCESSORIES
For better sharpening quality, it is recommended to equip the machine with the filtration system ELITE FILTRAmaq UNO. Filtration down to 2 µm.
DOWNLOAD LEAFLET
REQUEST INFORMATION
MACHINES COMPARISONS AT A GLANCE
| MODEL | TOP GRINDING | FACE GRINDING | BACK OFF GRINDING | SIDES GRINDING |
|---|---|---|---|---|
| AVB 850 | All tooth shapes | All tooth shapes | No | No |
| AVB 750 | All tooth shapes | All tooth shapes | No | No |
| SVG 850 | All tooth shapes | Flat teeth | No | No |
| SVG 750 | All tooth shapes | Flat teeth | No | No |
| MVB 850 | Flat teeth | Flat teeth | Yes | No |
| MVB 750 | No | No | Yes | No |
| MVB 670 | Chipbreaker slots | No | No | No |
| MVB 650 | No | Hollow face | No | No |
| GBT 851 | No | No | No | Yes both sides at same time |
| GBT 850 | No | No | No | Yes both sides at same time |
| GBT 750 | No | No | No | Yes: One side at a time |
