INDUSTRIAL KNIFE SHARPENING MACHINE
CAPACITY UP TO 4090 MM. DEPENDING ON MODEL
AUTOMATIC, SIMPLE AND COMPACT MACHINE FOR THE MOST VERSATILE USE ON GRINDING OPERATIONS
)
HIGHLIGHTS
- Very easy to use
- Programmable working cycle with selectable sparkout fine-finishing phase
- Carriage free of vibration: movement by toothed belt
- Carriage with hardened guides and recirculating ballbearings
- Grinding wheel rotation sense adjustable by button switch
ELITE CU. MACHINE BASIS.
The ELITE CU model is our innovative sharpening and grinding machine for straight knives with sharpening capacity from 1000 mm up to 4090 mm. depending on model versions.
It is an all-terrain machine recommended for most sharpening workshops.
It is automatic, simple, compact and economical that requires little maintenance.
Equipped with a very easy-to-use control panel with a 7” LCD touch screen, with which sharpening and preparation times are as fast as possible.
Up to 20 different sharpening programs can be memorized.
We have been analyzing the working cycle of a workshop to optimize the use of the machine. The result is a control panel with only the needed buttons, like the knives sharpening machines of the past, but inside has a powerful PLC, so that the sharpening cycle is automatic with good quality.
Once the sharpening cycle is finished, if you selected the polishing cycle, this is activated automatically, for maximum sharpening quality and minimum surface roughness of the knife. And the machine automatically reduces the carriage speed for that fine-finishing operation.
ELITE CU. HOW IT WORKS

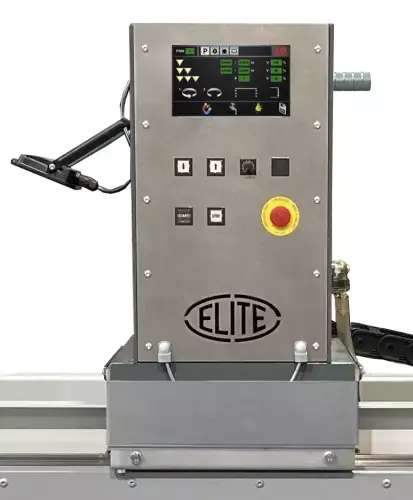

Fast and easy to use control panel
Program your own sharpening parameters with the super fast colour touch screen panel. The color touch screen has been designed with a fast an easy interface and usability that makes it very easy to program the machine. It allows to create and to save programs, perfect for the sharpening of paper cutting knives or knives manufacturing.

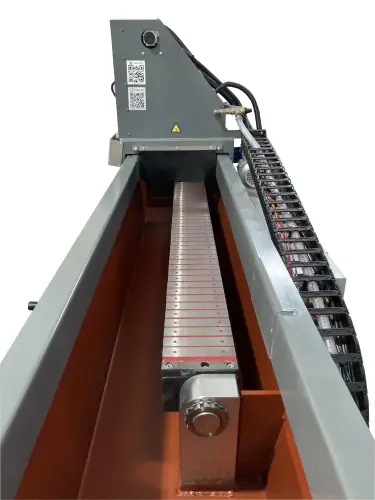

Magnetic chuck

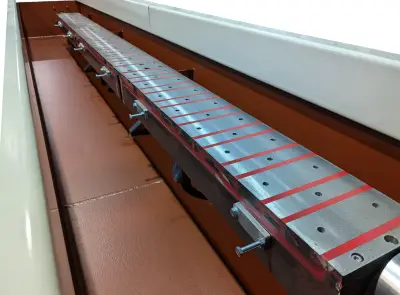

Magnetic chuck 150 mm. width supported by extra rigid feet
LED lamp
LED lamp equipped as standard to correctly see the approximation of the grinding wheel to the blade
Automatic or manual down-feed of grinding wheel
You can move up or down the grinding wheel with the push buttons, or do it with the manual handwheel to get a more precise feedback

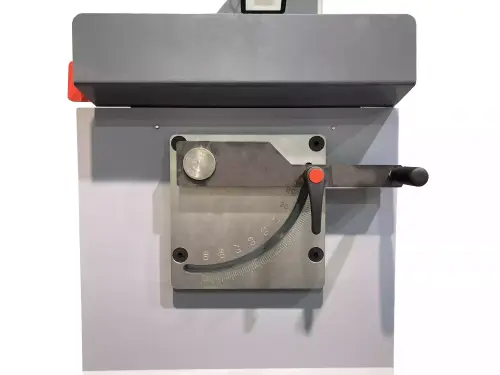

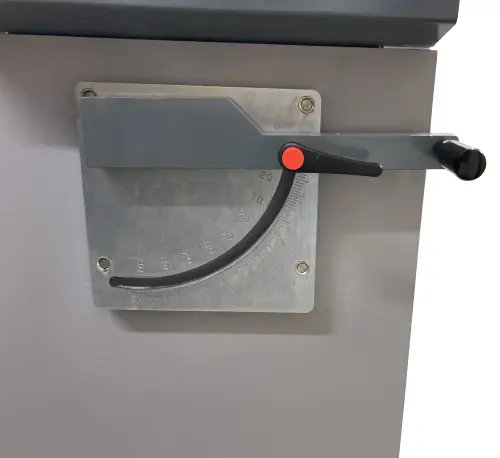

Knife degrees easy and fast to adjust by means of a graduated lever from 0º to 90º

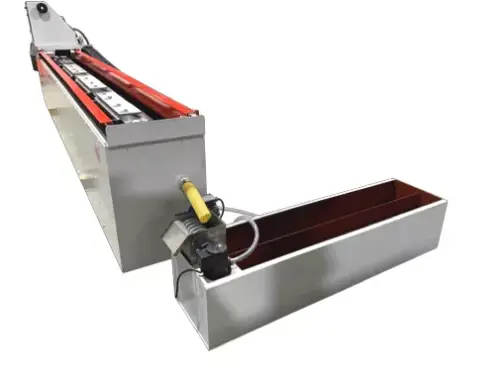

Magnetic disc cleaner

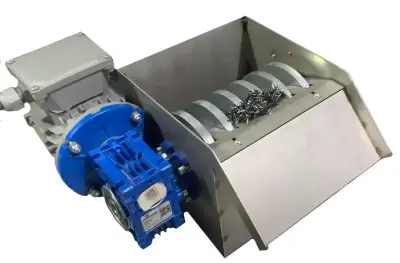

Optional available: version with magnetic disc cleaner for automatic removal of magnetizable dirt.
Magnetic disc cleaner
ELITE CU. EQUIPMENT INCLUDED
- Quick adjustment system for the carriage's travel
- LED lamp for lighting the work area.
- Control panel with 7” color touch screen
- Cable chain for guiding the cables of the sharpener carriage
- Magnetic chuck with electro-permanent system of 150 mm. wide, adjustable from 0º to 90º
- Anti-vibration supports for leveling and fixing the machine to the ground
- Grinding wheel holder for 200 mm diameter grinding wheels.
ELITE CU. SPECIFICATIONS
| TECHNICAL DATA | CU |
|---|---|
| Grinding wheel motor power | 5.5 HP - Optional: 7.5 HP |
| Grinding wheel diameter | 200 mm. |
| Carriage speed | From 1 to 20 m/min. |
| Max. distance between grinding wheel and chuck | 140 mm. |
| Magnetic chuck wide | 150 mm. |
| Coolant tank | 220 liters with mechanic separation |
| Max. connected power | 8 kW (10 kW for 7.5 HP version) |
| Width of magnetic clamping chuck | 150mm. |
| Rotation movement of the magnetic clamping chuck | from 0º to 90º |
| Grinding wheel holder for grinding wheels | ø 200 mm. |
| Connection voltage | 400V 3Ph 50Hz - 480V 3Ph 60Hz - 220V 3Ph 60Hz |
| Required connection power | 8 kW (10 kW for the 7.5 HP version) |
| AVAILABLE VERSIONS | |||
|---|---|---|---|
| Model | Magnetic chuck size | Size | Weight |
| CU 1000 | 1000 mm. | 2200 x 800 x 1500 mm. | 690 Kg. |
| CU 1500 | 1500 mm. | 2700 x 800 x 1500 mm. | 890 Kg. |
| CU 2000 | 2030 mm. | 3200 x 800 x 1500 mm. | 1290 Kg. |
| CU 3000 | 3060 mm. | 4200 x 800 x 1500 mm. | 1890 Kg. |
| CU 4000 | 4090 mm. | 5200 x 800 x 1500 mm. | 2290 Kg. |
RECOMMENDED OPTIONAL ACCESSORIES
- 7.5 HP grinding wheel motor (9 HP in 60 Hz version.)
- Adjustable grinding wheel motor rotation speed
- Segment holder support for segmented abrasives
- Resin grinding wheel ref. 3551-A for sharpening steel blades.
- CBN grinding wheel ref. 3140-A for sharpening HSS blades.
- Diamond grinding wheel ref. 3040-A for sharpening carbide blades.
- SintoCut PRO MIX 20L coolant.
- CU-REF refrigeration equipment.
- Magnetic disc cleaner for automatic removal of magnetizable dirt.
- For better sharpening quality, it is recommended to equip with the filtration system ELITE FILTRAmaq UNO. Filtration up to 2 µm.
Assembly of different grinding wheels

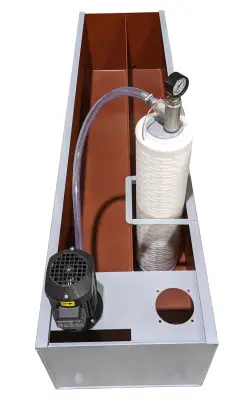

ELITE FILTRAmaq UNO

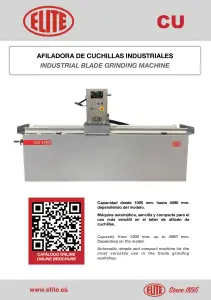

DOWNLOAD LEAFLET
VIEW USER MANUAL
MACHINES COMPARISONS AT A GLANCE
| MODEL | GRINDING LENGHT | TYPES OF KNIVES | GRINDING WHEEL | CHUCK ROTATION |
|---|---|---|---|---|
| CU PRO | 1000, 1500, 2030, 3060, 4090, 5120, 6150 mm. | All kinds of knive. Also for manufacturing | ø250 (Optional up to ø350 mm.) | 0º - 90º |
| CU | 1000, 1500, 2030, 3060, 4090 mm. | All kinds of knive | ø200 mm. | 0º - 90º |
| CU mini 1200 | 1230 mm. | Planer, recycling | ø150 mm. | 0º - 90º |
| CU mini 650 | 650 mm. | Planer knive | ø125 mm. | 0º - 45º |
