BASIC TOP AND FACE GRINDING MACHINE WITH PERIPHERAL GRINDING WHEEL
HIGHLIGHTS
- EASY TO USE: Control panel with on-screen guided instructions
- LOW MAINTENANCE: Hydraulic free for trouble free maintenance
- EXCELLENT QUALITY PRICE
- Full automation with a rational price: 5 CNC axes for automatic work programmable from the control panel
- Programmable tooth pitch
- Automatic sharpening of the top and face of circular saw blades with carbide tip
- Very compact machine with a wide range of disc diameters: from 100 to 850 mm.
ELITE SVG 750. THE SMART CHOICE.
The ELITE SVG 750 model is our new sharpening machine for the top and face of all common tooth geometries in circular saw blades with carbide tip for circular blades for circular blade diameters from ø100 to 850 mm.
An innovative machine with a grinding system perfect for cutting melamine or laminated wood without chipping or marking the wood. It uses the famous peripheral grinding wheel system to obtain a saw blade with a very smooth cutting edge. Designed to be fully automatic, without superfluous additional costs. No complicated extras that can easily break or costly to repair.
With 5 CNC axis for complete machining of all common tooth geometries in one cycle. Short travel paths ensure fast grinding operation.
X, Y, Z, A, B:
A: Tooth advancement
B: Cutting angle
X: Sharpening load
Y: Lateral angle of the tooth
Z: Sharpening path
The optimal design of the cabin ensures easy adjustment of the saw blade.
STANDARD TOP TOOTH SHAPES
STANDARD FACE TOOTH SHAPES
ELITE SVG 750. HOW IT WORKS

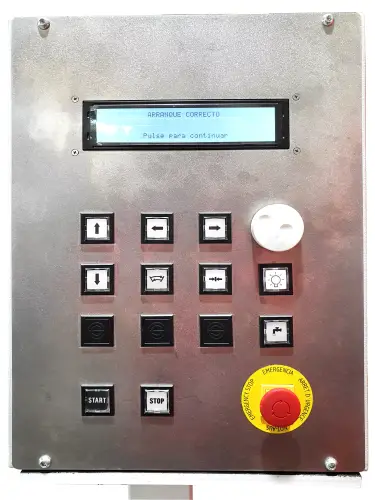

Easy to use control panel
All the functions of the buttons are explained in the buttons with ilustrations. And every button is intended to do a single task. So you know what to expect from a button press.
The control panel with LCD screen allows the programming of the machine, among the programmable values are:
- Tooth angle programming: The grinding wheel axis will automatically move to the value entered in the program.
- Sharpening path
- Sharpening load
- Sharpening speed
- Tooth pitch
- Advancement speed of the teeth indexing finger
- Number of teeth
- Broken teeth
Up to 7 teeth/minute in triple-chip tooth
All the movements has been optimized to reduce dead times.
Grinding wheel rotation speed variable from 2.500 to 5.000 RPM
Our machines include the variable frequency drive as a standard feature, so you can adjust grinding wheel speed at the optimal value and also reduces energy consumption.
Integrated refrigeration equipment
It allows wet sharpening with water-soluble coolant or grinding oil for better sharpening quality and longer grinding wheel life. for better surface quality and longer grinding wheel life.
Integrated coolant system with 220-liter tank and removable grates for easy cleaning. !Cooling unit for the grinding machine ELITE model SVG 750
Easy access
Easy access for servicing the grinding machine ELITE model SVG 750
Clean design and easy access for servicing or repairing the machine.
Easy maintenance
The electrical panel is located at the bottom and the mechanics at the top of the machine, protected by an easy-to-open cover.
The electrical panel is organized in a clean way, so maintenance is simple when necessary.
ELITE SVG 750. EQUIPMENT INCLUDED
- Saw holder for incisors with a diameter of 100 to 210 mm.
- Saw holder for discs with a diameter of 210 to 850 mm.
- Centering ring: ø30 mm.
- Grinding wheel holder for face and back sharpening wheels
- 3 mm. feed pawl
- Lighting of the work area using LED lamp
- Device for sharpening saws of equal diameters
- Prepared for connection to a machine filtration system or a centralized filtration system.
ELITE SVG 750. SPECIFICATIONS
| TECHNICAL DATA | SVG 750 |
|---|---|
| Saw blade outside diameter | From ø100 to ø850 mm. (4" to 33,5") |
| Saw blade hole diameter | From ø10 mm. |
| Saw blade thickness | Up to 8 mm. |
| Tooth pitch | Up to 125 mm. |
| TOP GRINDING | |
| Clearance angle | From +5º to +25º |
| Bevel angle | From -45º to +45º |
| Grinding path | Up to 25 mm (0.98"). |
| Available tooth shapes | Flat (F) - Single bevel (L/H or R/H) - Alternate (ATB) - Alternate and bevel (HGB) - Pointed tooth (PTR) - Triple chip (TRZ) - Pointed and flat - Triple chip and flat (TCG) - Double triple chip (D/T/C) - Combination (SLR) |
| FACE GRINDING | |
| Hook angle | From -10º to +25º |
| Grinding path | Up to 20 mm. |
| Available tooth shapes | Standard face flat |
| OTHER DATA | |
| Grinding wheel motor | 0,33 kW |
| Grinding wheel speed | Adjustable from 2500 to 5000 RPM |
| Grinding wheel diameter for top | ø150 mm. |
| Grinding wheel diameter for face | ø175 / 200 mm. |
| 5 CNC axis | A: feed pawl - B: tooth hook angle - X: grinding load - Y: tooth lateral angle - Z: grinding path |
| Machine dimensions | 1430x 1285 x 1820 mm. |
| Machine weight | 640 Kg. |
TECHNICAL REQUIREMENTS
6 bar air connection required.
Connection voltage: 220V 1Ph 50/60Hz
Required connection power: 1.5 kW
RECOMMENDED OPTIONAL ACCESSORIES
For better sharpening quality, it is recommended to equip the machine with the filtration system ELITE FILTRAmaq UNO. Filtration down to 2 µm.
